Plywood Thickness Tolerance: Standards & Quality Guide

Plywood thickness tolerance: EN 315, ISO 12465, JAS standards by market, factory control methods, and buyer verification.

Every year, buyers reject container loads over a single measurement. Not delamination, not wrong species — thickness out of tolerance.

For plywood importers sourcing from Vietnam, plywood thickness tolerance is the difference between panels that fit your CNC router, cabinet grooves, and structural frames — and panels that don’t. A 0.5mm deviation sounds trivial. On a 12mm furniture sheet, it means your 11mm groove is either too loose or impossible to cut. On 100 pallets, it means $60,000 of lumber in a dispute.

This guide covers the international standards by market, the root causes of variation, how Mika Plywood produces calibrated plywood from 3 production facilities in Northern Vietnam, and the exact verification procedure buyers should run before accepting any vietnam plywood thickness shipment.

---

📐 What Plywood Thickness Tolerance Actually Means

Plywood thickness tolerance is the permitted deviation between the nominal (specified) thickness and the actual measured thickness of a finished panel.

When you order 18mm birch plywood, the factory’s obligation is not to deliver exactly 18.000mm — that is physically impossible at scale. The obligation is to deliver panels within an agreed band. For export-grade furniture plywood, that band is typically ±0.3mm, meaning every panel must measure between 17.7mm and 18.3mm.

Three distinct measurements matter:

Measurement	What it checks
Nominal thickness	The specification you ordered (e.g., 18mm)
Actual thickness	The caliper reading at a given point on the sheet
Tolerance	The maximum permitted deviation from nominal

The tolerance band applies not just to the average across a pallet, but to every individual reading. A pallet averaging 18.0mm with individual sheets ranging from 17.4mm to 18.6mm fails a ±0.3mm spec — even though the average is perfect.

⚠️ Important: Always specify measurement method in your purchase order. EN 315 requires measurements at defined points; visual “eyeball” checks are not contractually valid.

---

🌍 International Thickness Tolerance Standards by Market

Vietnam plywood is exported to 20+ countries. Each major market references a different standard, and these standards set the contractual baseline.

📌 EN 315 — Europe (Most Widely Referenced)

BS EN 315 is the European standard for plywood dimensional tolerances (EN 315:2000, confirmed 2010). The tolerance formula for sanded panels is:

Upper deviation = + (nominal × 0.03 + 0.2) mm
Lower deviation = − (nominal × 0.03 + 0.4) mm

Applying this to common thicknesses:

Nominal (mm)	Upper limit (mm)	Lower limit (mm)	Band
6	+0.38	−0.58	~1.0mm
9	+0.47	−0.67	~1.1mm
12	+0.56	−0.76	~1.3mm
15	+0.65	−0.85	~1.5mm
18	+0.74	−0.94	~1.7mm
21	+0.83	−1.03	~1.9mm

The standard is more permissive than most buyers expect. In practice, premium furniture-grade factories achieve ±0.3mm — tighter than the formula minimum. unsanded plywood carries wider tolerance of ±0.5mm across all thicknesses. Measured at: ≥50mm from each edge

European buyers (Germany, Poland, France, Spain) typically write EN 315 directly into their purchase orders. Mika Plywood’s furniture-grade line meets EN 315 sanded tolerances as standard (Mika Plywood QC data, 2026).

📌 ISO 12465 — General International Reference

ISO 12465:2007 (Plywood — Specifications) is the global baseline for markets that don’t specify a national standard. Tolerance provisions largely align with EN 315 for sanded grades.

Most Middle East, Indian, and Southeast Asian contracts reference ISO 12465 or simply specify tolerance directly (e.g., “±0.3mm”) without citing a named standard.

📌 JAS — Japan (Strictest Market)

JAS (Japanese Agricultural Standard for Plywood) requires the tightest tolerances in Asia:

• ±0.2mm for Class 1 furniture/interior panels
• Applies to both sanded and unsanded surfaces
• Measurement at 5 defined points per sheet (JAS 1453)

Japan’s tolerance requirement means only factories producing calibrated plywood — wide-belt sanded to ±0.1mm sander setting — with consistent veneer sourcing can reliably supply the Japanese market. It’s a genuine barrier to entry. Mika Plywood’s premium furniture line (styrax core, full stitched, sanded) is designed to meet JAS requirements, with vietnam plywood thickness documentation provided per shipment.

📌 Market Summary

Market	Standard	Sanded tolerance	Unsanded tolerance
Europe	EN 315	±0.3mm (≤12mm)	±0.5mm
Japan	JAS 1453	±0.2mm	±0.2mm
South Korea	KS F 3113	±0.3mm	±0.5mm
India, ASEAN	ISO 12465 / contract	±0.3–0.5mm	±0.5–0.8mm
Middle East	Contract specified	±0.3–0.5mm	±0.5mm
US	HPVA HP-1	±0.8mm (sanded)	N/A

💡 Tip: When specifying tolerance in your purchase order, always cite both the standard AND the numeric value. “EN 315 compliant” without a number can be ambiguous across sanded vs unsanded categories.

Need tolerance-certified panels for your market? Contact Mika Plywood for a sample shipment with measurement data — specify your standard and we document every shipment.

---

🔧 Why Thickness Varies: The 5 Root Causes

Understanding what drives thickness variation helps buyers qualify factories — and helps factories prevent rejections. At Mika Plywood’s production facilities, the QC team tracks five primary causes (Mika Plywood production data, 2026):

1. Veneer moisture content before pressing

Target moisture for core veneer is 6–8%. Above that range, steam released during pressing creates micro-blisters that reduce final density and panel flatness. Below 4%, veneer becomes brittle and fractures under press pressure, leaving voids that increase variation. Consistent drying is the single most controllable variable in the pressing stage. See the Vietnam plywood manufacturing process guide for how drying ovens are calibrated.

1. Press plate uniformity and calibration

Hot-press plates deform marginally over time. A plate that applies 10–14 kg/cm² uniformly when new may develop hot spots or low-pressure zones after 50,000+ cycles. Factories that calibrate press plates monthly — not just annually — maintain tighter post-press thickness. This is a direct reflection of production discipline.

1. Veneer peel thickness consistency

Rotary-peeled veneer thickness varies by log quality and lathe condition. Core veneers nominally cut at 1.7mm may range from 1.5mm to 1.9mm. A 5-ply panel built on 3 core layers absorbs this variation additively. The total error before sanding can reach ±1.0mm on an 18mm panel if veneer quality is not graded and sorted before assembly.

1. Glue spread uniformity

Inconsistent glue application creates variable bonding layers. Phenolic (WBP) glue lines are thinner and more uniform than melamine lines; this is one reason film-faced plywood (phenolic) often has better post-press tolerance than furniture-grade MR panels at the same pressing temperature.

1. Post-press conditioning time

After the press opens, panels exhibit “spring-back” — partial elastic recovery from compression. Factories that stack and condition panels for at least 24–48 hours before sanding get more stable final dimensions than those that sand immediately. Skipping this step is a cost-saving shortcut that reduces tolerance consistency.

---

⚙️ How Qualified Factories Control Thickness Tolerance

Thickness tolerance control is a multi-stage process, not a single QC check at the end of the line. Mika Plywood’s on-site quality team manages tolerance across five stages:

Stage 1 — Veneer incoming inspection

Before veneer enters core assembly, thickness is sampled with digital calipers. Sheets outside ±0.1mm of target peel thickness are flagged for regrading. Only consistent veneer enters the premium furniture line.

Stage 2 — Press plate calibration

Mika Plywood’s press plates are checked for flatness monthly using a dial gauge bridge. Plates exceeding 0.1mm of crown or sag are resurfaced before returning to production. This prevents systematic bias (panels consistently thin or thick from one area of the press).

Stage 3 — Post-press conditioning

Pressed panels condition in stacks for 24–48 hours before reaching the sander. Spring-back stabilizes. Moisture redistributes. This investment in floor time is why Mika Plywood’s furniture-grade sheets reach the sander at a consistent starting dimension.

Stage 4 — Wide-belt calibration sanding

This is the critical step. The sander removes material to bring panels to exact target thickness. Calibration passes remove 0.3–0.5mm across the face and back simultaneously, correcting for press-induced variation. The sander itself is set to ±0.1mm and checked every 2 hours of operation.

For sanded plywood destined for Japan or European furniture applications, two sanding passes are used: a heavy calibration pass (removing up to 0.5mm) followed by a finish pass (80-grit or 100-grit for surface quality).

Stage 5 — Final measurement and load release

Before container loading, a QC inspector measures at 10+ points per representative sheet using a digital caliper (0.01mm resolution). Readings are logged. Any sheet outside the agreed tolerance is pulled from the pallet. This is documented for every Mika Plywood shipment.

“Thickness tolerance is not just a technical number — it’s a reflection of manufacturing discipline and a promise kept to the customer.” — David, Export Project Leader, Mika Plywood (10+ years in Vietnam plywood export)

---

🏆 Tolerance by Product Grade

Different product grades carry different tolerance expectations — and different price points. Understanding this prevents buyers from over-specifying (paying for precision they don’t need) or under-specifying (receiving variation that causes downstream problems).

Grade	Typical use	Face	Sanding	Tolerance
Premium furniture (birch, EV, okoume)	Cabinet interiors, visible furniture	D/E birch, EV	Yes — 2-pass	±0.2mm
Standard furniture (bintangor A, pine)	General furniture, flat-pack	A/B	Yes — 1-pass	±0.3mm
Commercial interior	Shopfitting, partition boards	B/C	Light sand	±0.3–0.4mm
Film-faced construction	Concrete formwork, shuttering	Phenolic film	No	±0.5mm
Anti-slip construction	Scaffold deck, truck floor	Anti-slip film	No	±0.5mm
Packing / packaging	Crates, pallets	Bintangor C/D	No	±0.5–0.8mm

The relationship between sanding and tolerance is direct: sanded panels achieve tighter tolerances because the sander physically removes variation introduced by the press. Unsanded panels carry more variation because they rely solely on press calibration.

For the plywood glue types and emission standards used across these grades, note that glue type (MR melamine vs WBP phenolic) affects bonding line thickness and therefore influences the starting variation before sanding — but properly calibrated sanding corrects for this.

---

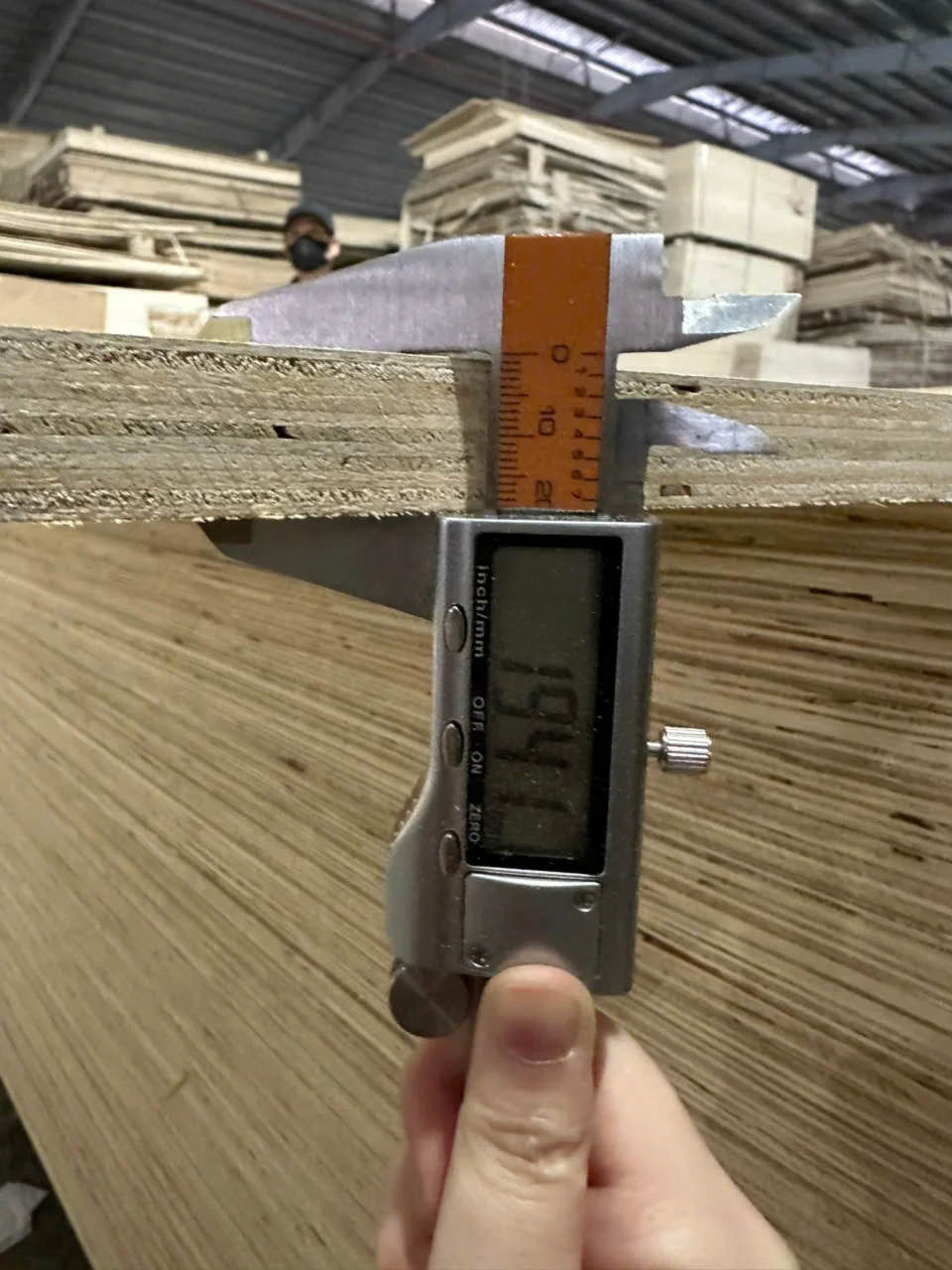

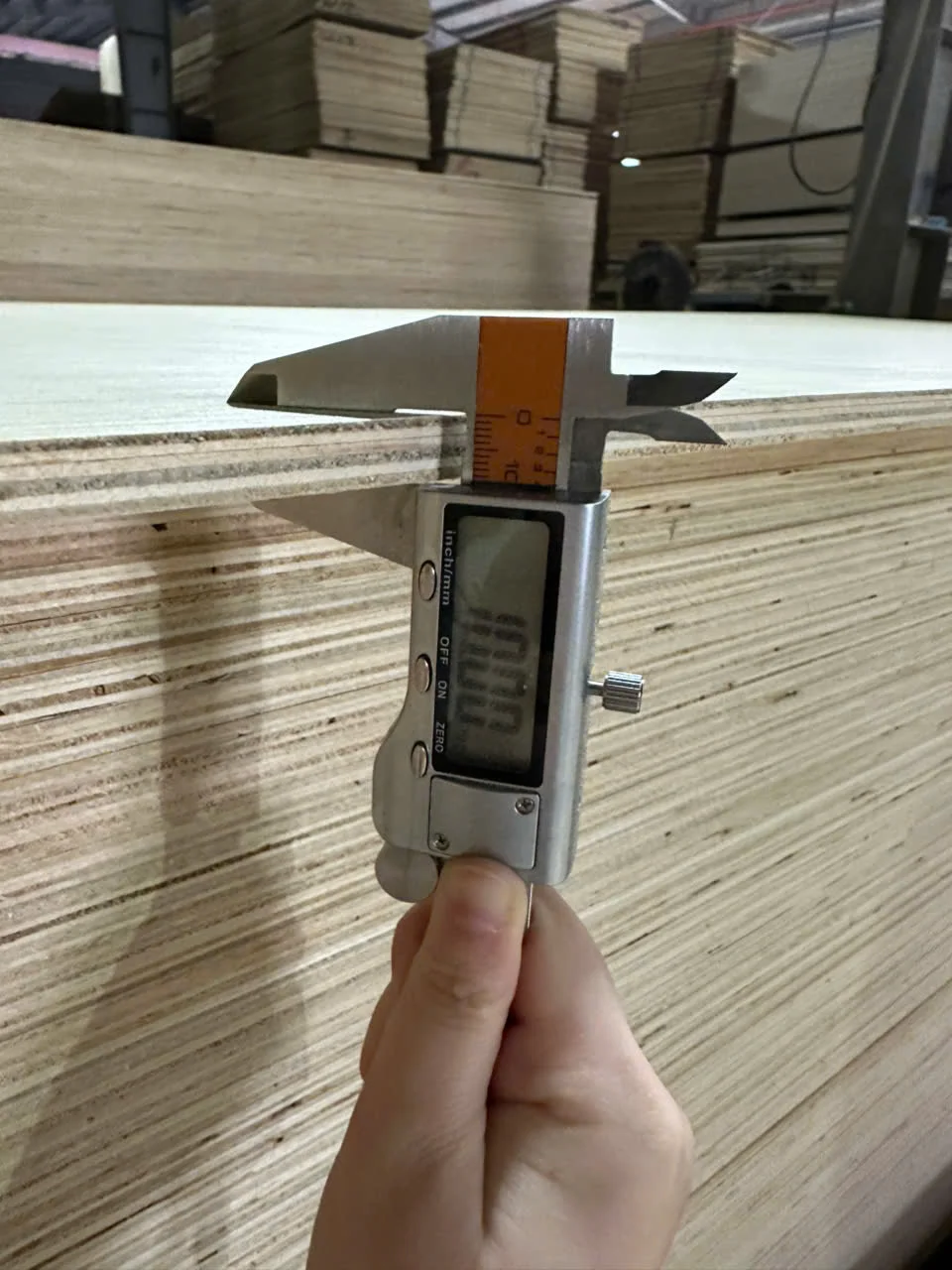

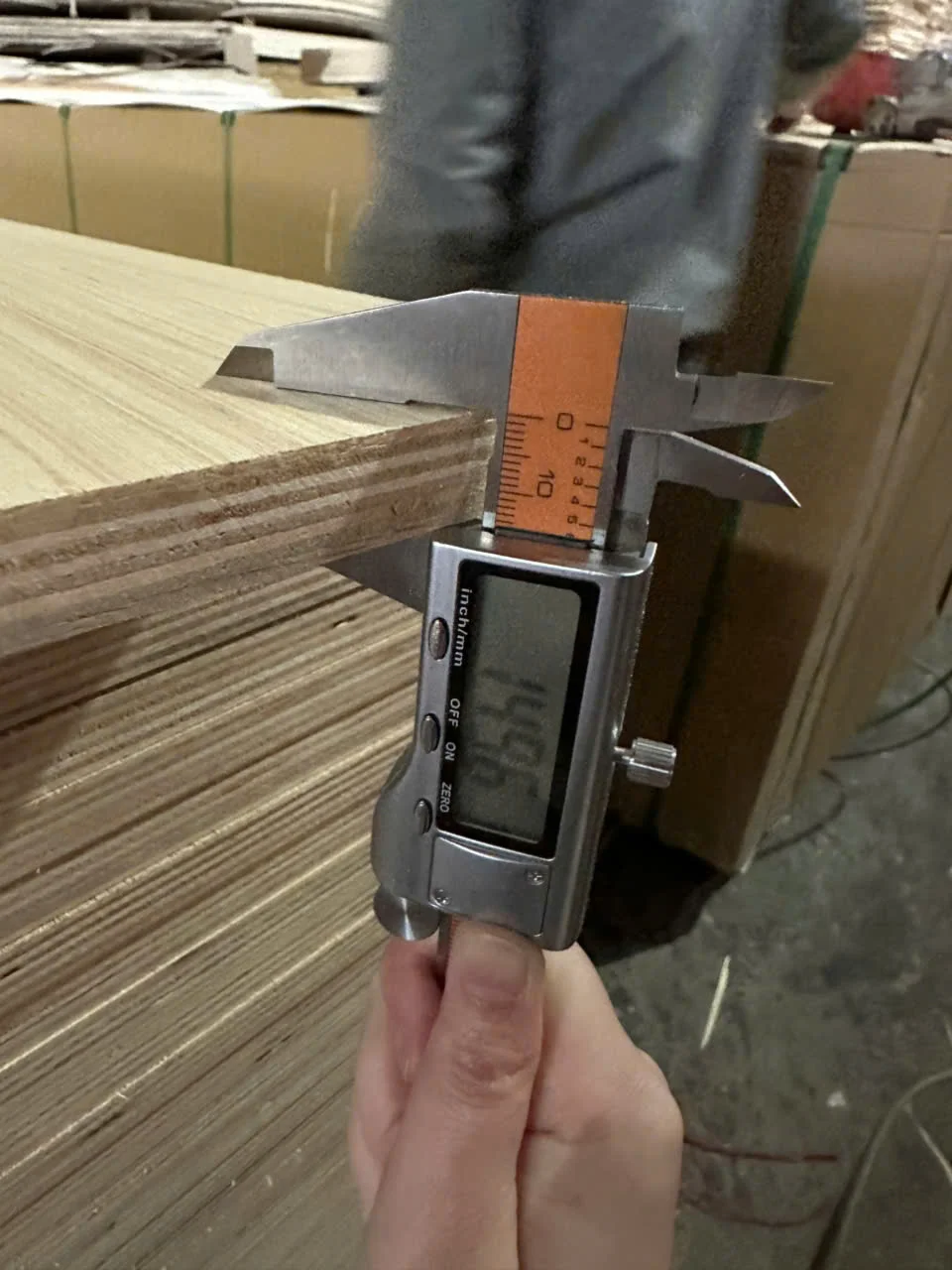

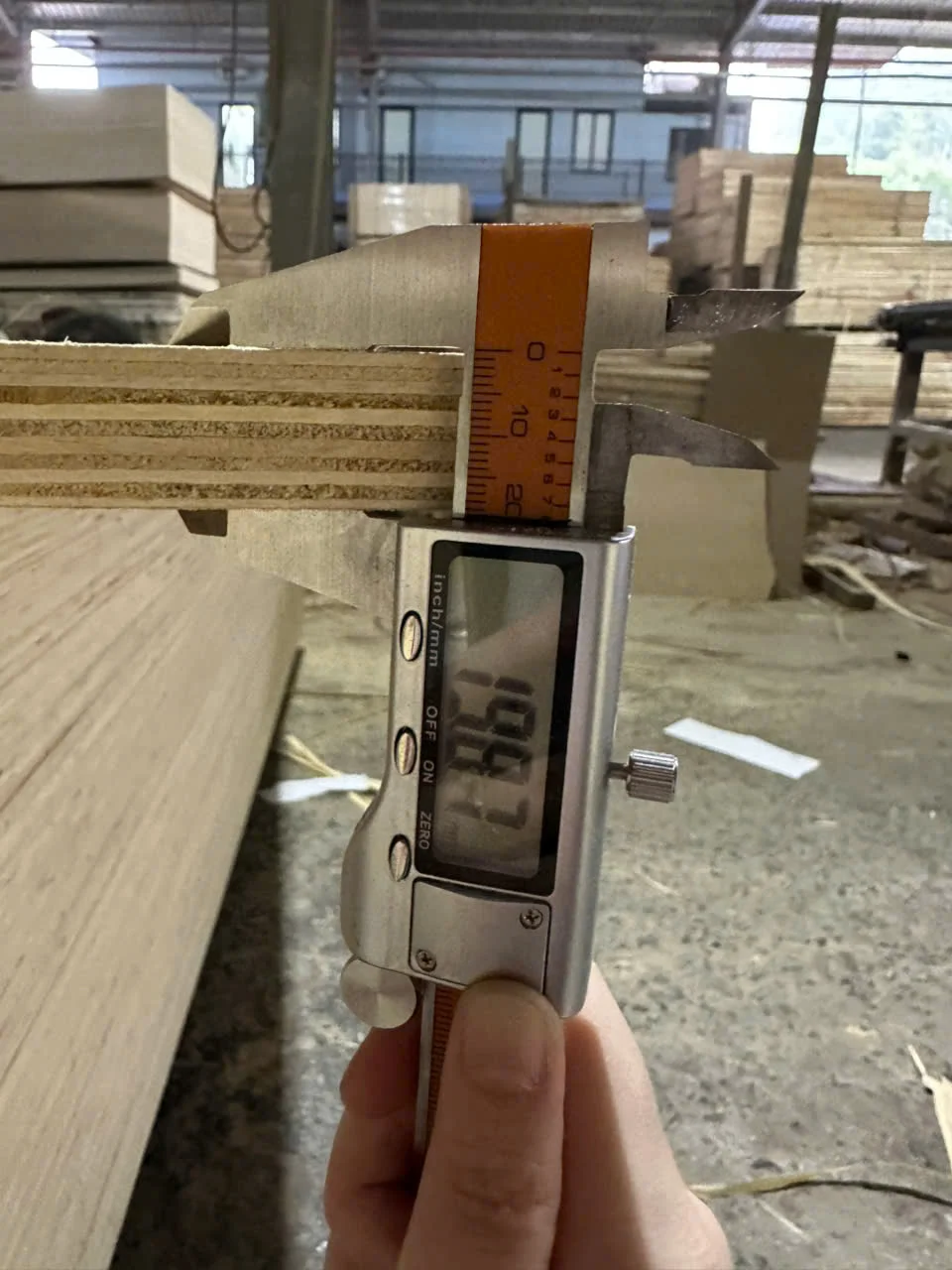

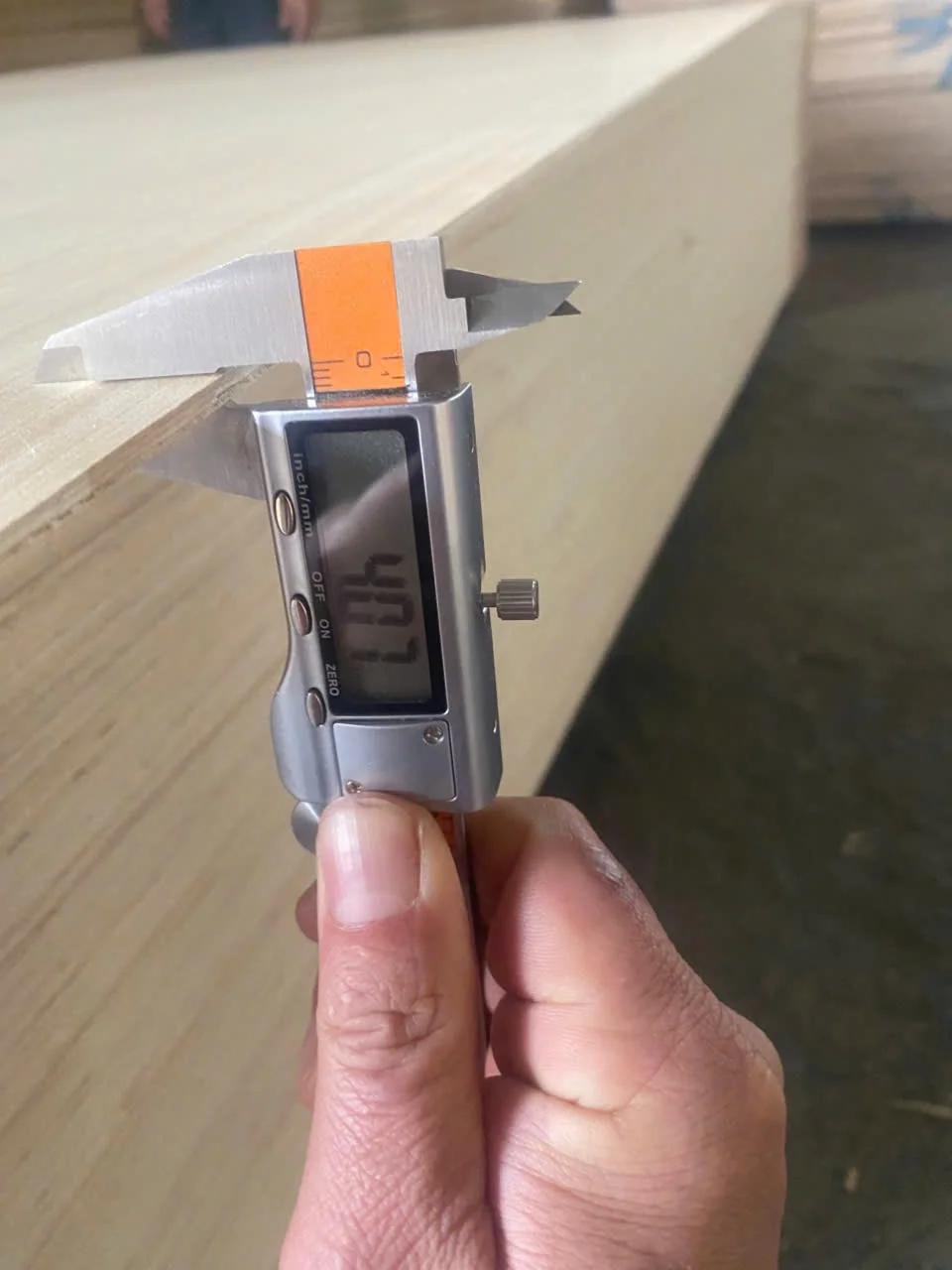

🔍 How Buyers Can Verify Thickness Tolerance

Do not rely on factory-provided thickness reports alone. Third-party verification at point of loading or upon arrival is the standard for serious B2B procurement. Here is a practical protocol:

Tools required:

• Digital caliper (resolution 0.01mm, accuracy ±0.02mm)
• Measurement template card (marks 9 standard points per sheet)
• Photographic documentation setup

Measurement protocol:

1. Sample selection: Minimum 5 sheets per pallet, selected from different positions (top, middle, bottom, front, back).
2. Points per sheet: Measure at 9 points minimum — 4 corners (50mm from edge), 4 midpoints of each edge, and center.
3. Record all readings: Tabulate in a spreadsheet. Calculate min, max, and range for each sheet.
4. Apply tolerance check: Compare each reading against the agreed tolerance band. One reading outside the band = the sheet fails.
5. Accept/reject decision: If >5% of sheets fail, trigger a formal dispute process with documentary evidence.

Acceptance criteria examples:

Specified thickness	Tolerance	Accept range
12mm	±0.3mm	11.7–12.3mm
18mm	±0.3mm	17.7–18.3mm
18mm	±0.2mm	17.8–18.2mm
21mm	±0.5mm	20.5–21.5mm

⚠️ Note: Always record caliper brand, model, and last calibration date in your inspection report. This documentation matters in dispute resolution.

The plywood quality control process at Mika Plywood includes third-party inspection access — buyers can send SGS or Bureau Veritas inspectors to measure before container sealing. This is standard for Mika Plywood shipments to Japan and EU.

---

📊 Thickness Tolerance and Price: The Real Relationship

Tighter tolerance costs more. The question is: how much more, and is it worth it?

From Mika Plywood’s factory data, producing furniture-grade plywood to ±0.2mm (JAS/Japan spec) vs ±0.3mm (EU/standard spec) involves:

• 2-pass sanding instead of 1-pass: adds ~15–20 minutes per m³ of throughput
• Higher veneer grading rejection rate: 8–12% more core veneer discarded
• More frequent press plate calibration: +$200–400/month in maintenance

The combined effect: ±0.2mm panels cost approximately 4–7% more than ±0.3mm panels at the same nominal thickness and species combination (Mika Plywood production data, 2026).

For buyers, the business case calculation is straightforward:

If your downstream process involves:

• CNC routing or automated panel processing → tight tolerance reduces machine downtime and blade wear
• Cabinet carcass assembly with precise groove joints → ±0.2mm eliminates shimming and sanding at assembly
• Flooring substrate → tight tolerance prevents height variation between panels

If your application is:

• Concrete formwork (film-faced) → ±0.5mm is fine; panels get coated anyway
• Packing and crating → ±0.8mm is acceptable; dimensional precision is irrelevant

Misspecifying tolerance — requesting JAS-level precision for a packing application — inflates cost by 10–15% for no functional benefit. Conversely, accepting packing-grade tolerance for furniture work creates downstream production problems that cost far more than the price premium.

For a full view of how specifications interact with pricing, see the plywood quotation guide.

---

📦 Thickness Tolerance in Practice: Common Buyer Mistakes

After reviewing hundreds of shipment claims, the Mika Plywood export team sees the same mistakes repeatedly:

Mistake 1: Not specifying tolerance in the purchase order

The single most common issue. When the PO says “18mm plywood” without a tolerance, the factory defaults to its standard (often ±0.5mm for commercial grades). If the buyer needs ±0.3mm, it must be written explicitly.

Mistake 2: Specifying one tolerance for mixed-spec orders

A container with both 12mm and 18mm panels, or sanded and unsanded sheets, needs tolerance specified per item — not a blanket statement. EN 315 sanded tolerance for 12mm is ±0.3mm; for 18mm, it’s ±0.5mm. One number doesn’t cover both.

Mistake 3: Measuring at the wrong points

Edge measurements pick up sanding edge-fall, a known artifact. EN 315 requires measurements at ≥50mm from each edge. Center measurements only miss corner-to-center variation. Use a 9-point protocol as described above.

Mistake 4: Confusing nominal and actual thickness

Plywood sold as “18mm” is press-calibrated to approximately 18mm, but the real specification is the tolerance band. A factory that consistently delivers 17.9mm ±0.2mm is technically delivering 17.7–18.1mm. If your groove spec is 17.5–18.5mm, this passes — but you should know the actual population center before designing clearances.

Mistake 5: Not accounting for moisture after shipping

Plywood absorbs moisture during ocean transit, particularly for containers stuck in humid ports. A panel that measured 18.0mm at loading in Hai Phong may arrive at 18.4mm after 6 weeks in a sealed container through the Indian Ocean. Acclimatize panels for 48–72 hours in the destination climate before final measurement and processing.

---

📐 What to Write in Your Purchase Order

Vague PO language is the root cause of most thickness disputes. These clauses eliminate the gap:

For furniture/cabinet/interior grade:

Thickness: 18mm ±0.3mm
Measurement: 5-point per BS EN 315 (four corners + center)
Surface: Sanded both faces (calibration grade)
Rejection criterion: Any sheet outside ±0.3mm, or >5% of batch outside ±0.3mm

For commercial/packaging grade:

Thickness: 12mm ±0.5mm
Measurement: Center point per batch sampling (10% of sheets)
Surface: Unsanded acceptable

Add this clause for any order exceeding USD 20,000:

Supplier to provide caliper reading report (min. 10 sheets) prior to container loading.
Report format: [sheet ID, 5-point measurements, average, deviation from nominal].

This pre-shipment caliper report costs the factory less than 30 minutes to produce — and it eliminates the need for a third-party inspection on routine repeat orders.

---

✅ Conclusion: Precision is a Specification, Not a Promise

Plywood thickness tolerance is not a background technical detail — it is a primary quality parameter that directly determines whether your production line runs smoothly or stops for rework.

Three things matter for sourcing thickness-verified plywood from Vietnam:

1. Write the tolerance into your PO — specify numeric value, reference standard, and measurement method. “±0.3mm per EN 315” is contractually clear.
2. Match tolerance to application — ±0.2mm for Japan/precision furniture, ±0.3mm for EU standard furniture, ±0.5mm for construction/commercial.
3. Verify at loading — digital calipers, 9-point protocol, documentary record. Mika Plywood welcomes third-party inspection before container sealing.

Disclosure: This article is published by Mika Plywood, a Vietnam-based plywood manufacturer and export operator. While we aim to provide objective industry guidance, readers should consider our perspective as a market participant when evaluating recommendations.

Request thickness-verified samples from Mika Plywood — include your target spec and we’ll send production measurement data with the sample shipment. No commitment required.

Frequently Asked Questions

What is the standard thickness tolerance for Vietnam plywood?Mika Plywood's standard export tolerance is ±0.3mm for furniture and interior grades, meeting EN 315 and ISO 12465 requirements. Premium grades (birch, EV) are held to ±0.2mm. Packing and commercial grades accept ±0.5mm.Which markets require the tightest plywood thickness tolerance?Japan (JAS standard) and South Korea require ±0.2mm for furniture-grade panels. The EU accepts ±0.2–0.3mm under EN 315. India, Middle East, and Southeast Asia typically accept ±0.3–0.5mm for commercial grades.How do Vietnam plywood factories achieve tight thickness tolerance?The critical step is wide-belt sanding (calibration sanding). After hot pressing, panels are sanded to target thickness on calibrated machines. Mika Plywood verifies tolerance with digital calipers at 10+ points per sheet before loading.Does sanded plywood always have tighter tolerance than unsanded?Yes. Sanded furniture-grade plywood achieves ±0.2–0.3mm because calibration sanding removes press variation. Unsanded packing or film-faced plywood relies on press calibration alone, typically ±0.5mm or wider.What causes thickness variation in plywood panels?The main causes are inconsistent veneer moisture before pressing (target 6–8%), uneven press plate calibration, varying veneer peel thickness, inconsistent glue spread, and insufficient conditioning time after pressing.
